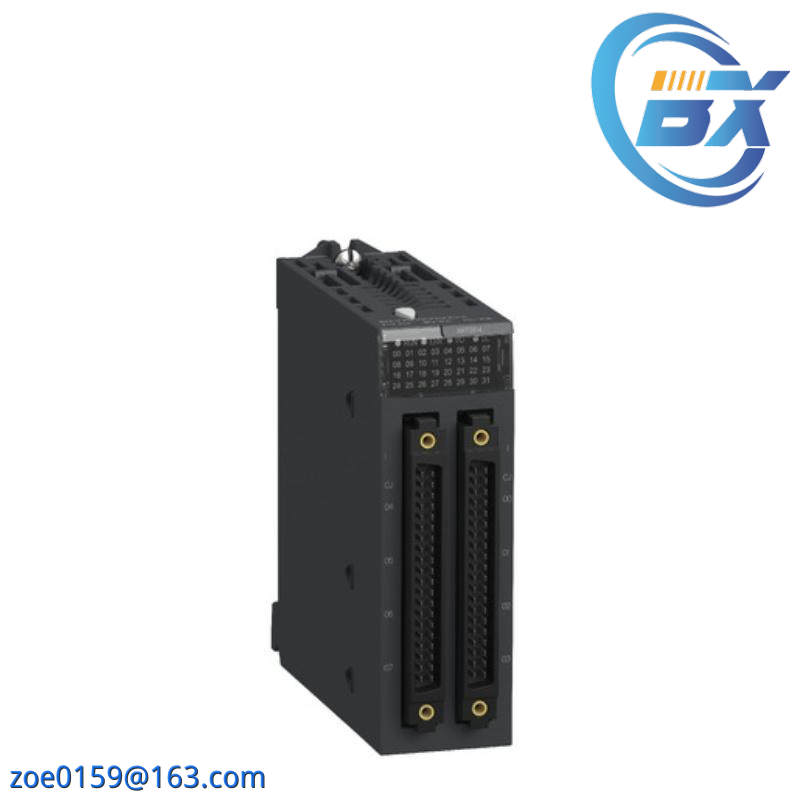

Schneider BMXART0814: High-Resolution Analog Input Module for Temperature Control – X80 Series

Number of Temperature Inputs:8

Multirange Channels:Thermocouples and RTD (2, 3, or 4 wires)

High Resolution:16 bits

Insulation Between Channels:750V

Operating Temperature Range:-40°C to +85°C

Operating Voltage Range:DC 12V to 48V

Communication Protocol:Modbus

Dimensions:Width x Height x Depth: 120mm x 100mm x 75mm

Weight:0.2kg

    Schneider‘s BMXART0814 Analog Input Module X80 is specifically designed for industrial applications requiring precise temperature measurement across a wide range of environments. This module boasts an impressive feature set including 8 multirange channels that support both thermocouples and RTDs, offering exceptional flexibility and adaptability to diverse industrial settings.

    With a high-resolution capability of 16 bits, this module ensures unparalleled accuracy in data acquisition, critical for the optimization of processes in manufacturing, chemical plants, and more. Its insulation capacity of 750V guarantees robust protection against electrical interference, ensuring reliable performance even under challenging conditions.

    Engineered with precision and reliability in mind, the BMXART0814 module supports various thermocouple types (J, K, T, E, S, B, R, and W), making it suitable for a broad spectrum of temperature measurement needs. Its multi-range channel design allows for precise calibration and monitoring of temperatures from -200°C to +850°C, catering to the demands of extreme conditions.

    Featuring an RS-485 communication interface, the module seamlessly integrates into existing industrial control systems, providing efficient data transfer without compromising on speed or reliability. This integration capability ensures smooth operation within complex networks, enhancing operational efficiency and productivity.

    Designed for durability and longevity, Schneider‘s BMXART0814 Analog Input Module X80 is built to withstand harsh industrial environments, ensuring continuous and accurate performance over extended periods. Its compatibility with Schneider‘s PLC systems and seamless integration capabilities make it an indispensable component in modern industrial automation solutions.
