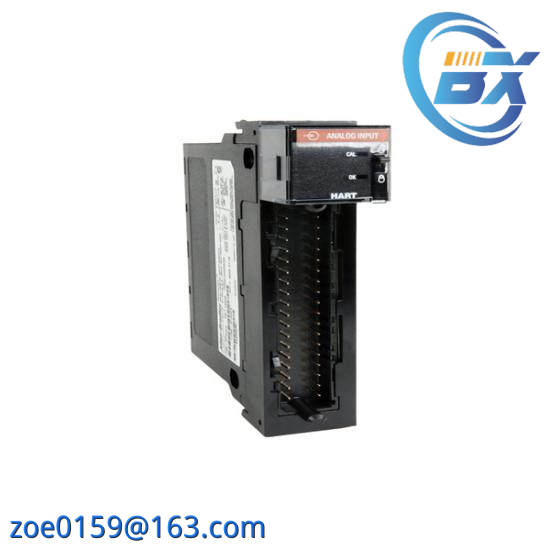

Rockwell Automation 1756-IF16H ControlLogix 16-Point Analog Input Module: Precision Data Acquisition for Industrial Automation

Model Number:1756-IF16H

Manufacturer:Allen-Bradley

I/O Channels:16

Analog Type:Input

Differential Voltage Range:0 to ±10V

Current Range:0 to ±20mA

Data Formats:Choice of three

Communication Speed:Up to 10MBPS

Power Consumption:6.2 Watts

Operating Temperature:-40°C to +70°C

Environmental Conditions:Non-condensing 5-95% relative humidity

Vibration Resistance:2G

Shock Resistance:30G

Enclosure Type:IP20

Communication Protocol:Ethernet/IP

Mounting Type:Chassis

Connection Type:Shielded or unshielded twisted pair cables compliant with 802.3

    The Allen-Bradley 1756-IF16H ControlLogix Analog Input Module is designed for demanding industrial environments where precise and reliable data acquisition is essential.

    Featuring 16 differential analog input channels capable of measuring both voltage and current signals within specified ranges, this module ensures accurate data collection for process control applications.

    With support for multiple data formats, users can tailor the module’s output to match their specific needs, enhancing flexibility and compatibility with existing systems.

    The robust design includes environmental protections against dust and water ingress, ensuring reliable operation in harsh industrial settings, from cold climates to hot desert conditions.

    Equipped with Ethernet/IP communication, the 1756-IF16H facilitates seamless integration with other Allen-Bradley PLC systems and network infrastructures, streamlining system setup and maintenance.

    For optimal performance, the module is recommended for installation on the ControlLogix system, taking advantage of its advanced diagnostics and error handling capabilities to minimize downtime and improve operational efficiency.
