Model Number:CP1W-40EDT1
Input Count:24
Output Count:16
Power Supply Voltage:30V DC
Dimensions:110x150x50mm
Operating Temperature Range:-20°C to +55°C
Operating Humidity Range:5% to 90% non-condensing
Communication Interface:RS-232C, RS-485
Programming Language:Ladder Logic, Instruction List
Relay Output Type:Single Shot, Pulse Width Modulation
Contact Rating:2A @ 30V DC
Environmental Certification:UL, CE, FCC

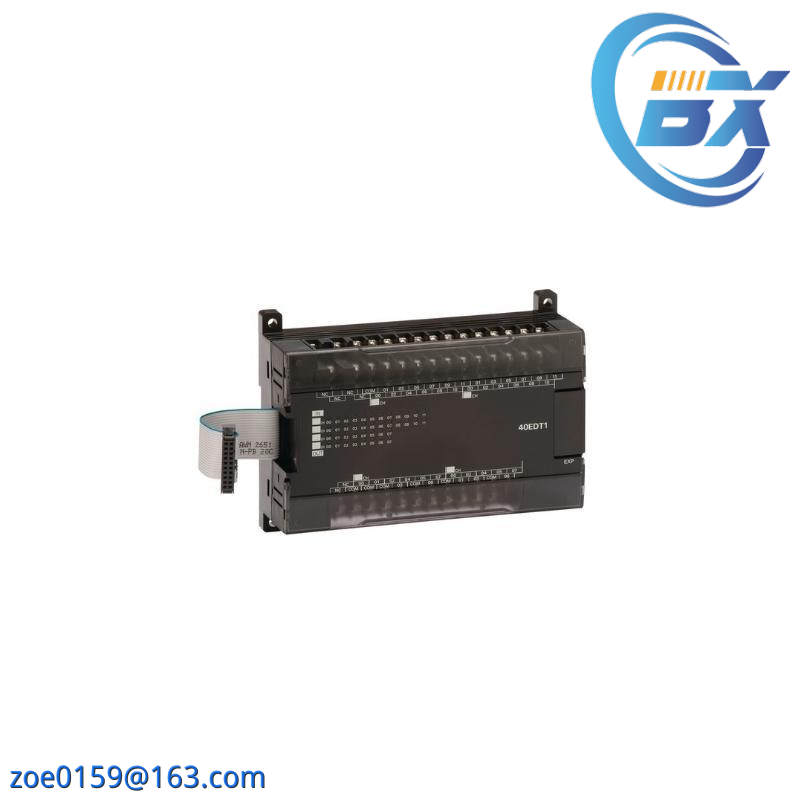

The Omron CP1W-40EDT1 PLC Expansion Module is specifically engineered to augment existing PLC systems, offering versatile functionality for industrial automation projects. Its compact yet robust design ensures seamless integration into various control systems without compromising performance.
Equipped with 24 input ports, this module is capable of handling diverse signal types, including digital, analog, and special function inputs, facilitating comprehensive system monitoring and control. The 16 output ports support both relay and SSR (Solid State Relay) configurations, allowing for direct control over actuators and machinery.
Operated efficiently on a 30Vdc power supply, the CP1W-40EDT1 is designed for optimal energy consumption and compatibility with a wide range of industrial equipment. The compact size of 110x150x50mm makes it ideal for space-constrained applications without sacrificing connectivity or performance.
With an operating temperature range from -10°C to +55°C, this module is suitable for a broad spectrum of industrial environments. It can withstand harsh conditions, ensuring reliable operation in both high and low-temperature settings.
The Omron CP1W-40EDT1 comes with a terminal block connection type, providing easy and secure wiring options for rapid installation and configuration. Its durability and reliability make it a preferred choice for enhancing automation capabilities in manufacturing, processing, and other industrial sectors.
