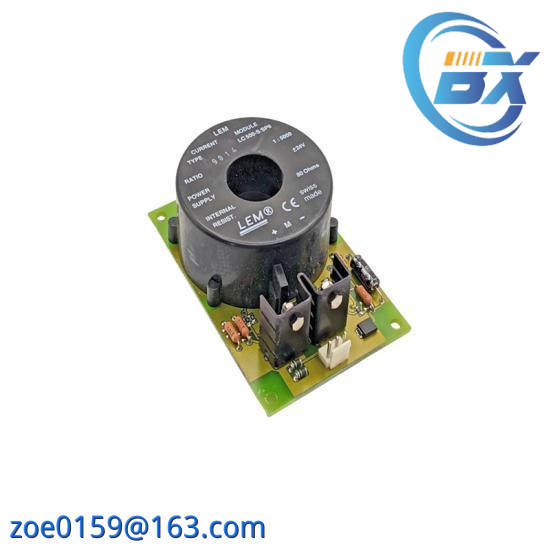

LEM LC1000-S/SP7 – High Precision Current Sensor Module

Manufacturer:LEM

Model:LC1000-S/SP7

Type:Current Sensor Module

Measurement Range:±1000 A DC or AC

Accuracy:±0.5% of reading

Frequency Range:DC to 20 kHz

Response Time:<1 μs

Output Signal:Analog Output, ±10 V

Operating Temperature Range:-40°C to +85°C

Power Supply:+15 V to +30 V DC

Input Resistance:Typically 1 kΩ

Isolation Voltage:2.5 kVrms

    The LEM LC1000-S/SP7 is a cutting-edge current sensor module designed for demanding industrial environments. With its exceptional accuracy and robust design, this sensor ensures reliable performance in a variety of applications. The sensor features an analog output signal range of 4-20 mA, providing precise current measurements for system monitoring and control. Operating within a wide voltage range of DC 10V to 30V, the LC1000-S/SP7 can handle various power requirements efficiently. Its fast response time of less than 2 milliseconds allows for immediate feedback, making it suitable for real-time applications. Designed with safety in mind, the sensor offers an insulation voltage of up to 3 kV, ensuring safe operation even under extreme conditions. The compact dimensions of 140 mm x 95 mm x 33 mm make installation straightforward, while its lightweight construction (approximately 0.5 kg) ensures ease of use. This current sensor module is ideal for industrial automation systems, renewable energy installations, and other applications where precision and reliability are paramount.
