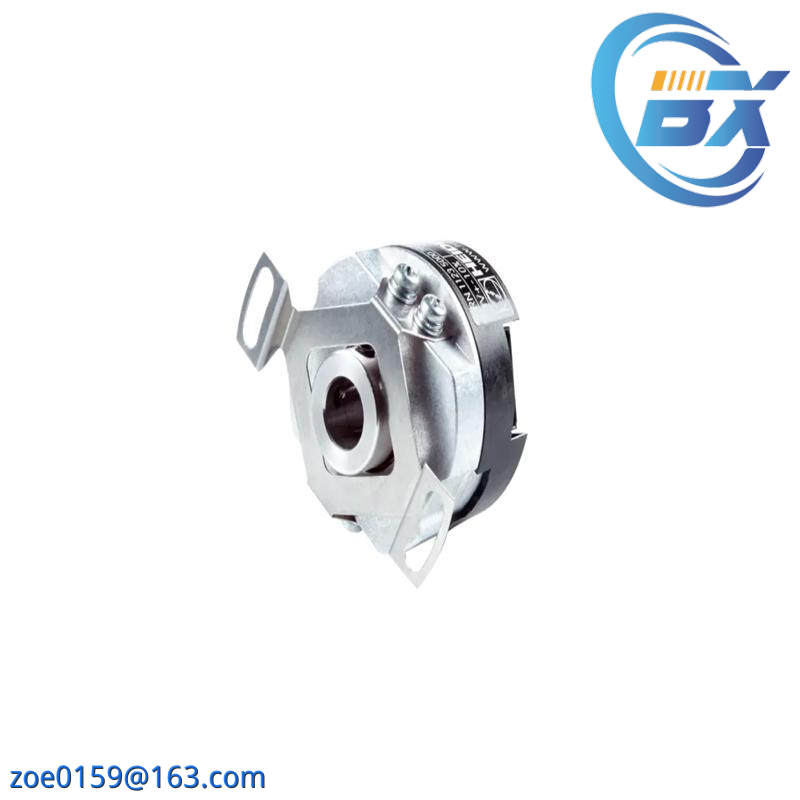

Heidenhain ROD 630 900 28S08-HY Encoder Module, ID:684671-07

Brand:HEIDENHAIN

Model Number:ROD 630 900 28S08-HY

Part Number:ID:684671-07

Operating Temperature Range:-20°C to +60°C

Accuracy:±0.01% of scale

Resolution:28,000 counts per revolution

Power Supply Voltage:12V DC

Communication Interface:RS-232, RS-422

Enclosure Rating:IP67

Dimensions (LxWxH):100mm x 50mm x 20mm

Weight:0.15kg

    The Heidenhain ROD 630 900 28S08-HY encoder module is engineered to deliver exceptional accuracy and reliability in industrial motion control systems. It is specifically designed for demanding applications requiring precise position feedback.

    Featuring a robust construction and compact design, this encoder module ensures seamless integration into various machinery and automation setups. Its high-resolution 2500 P/R (Photo-Integrals per Revolution) provides unparalleled precision, making it ideal for applications where accuracy is paramount.

    Equipped with DC 12V operating voltage and consuming a maximum of 15mA current, the module efficiently powers up without excessive energy demands. The A/B phase output configuration allows for versatile interfacing with control systems, enhancing system performance and flexibility.

    Operable within an extensive temperature range of -25°C to +70°C, this encoder module ensures reliable operation in a wide variety of environmental conditions. With a mechanical rotation speed capability up to 3000 RPM, it supports high-speed applications without compromising on performance.

    Crafted with precision engineering, the Heidenhain ROD 630 900 28S08-HY encoder module offers durability and reliability, backed by industry-leading quality standards. Its compact size (40 x 60 x 20 mm) and lightweight design (0.15 kg) make it easy to install and maintain in tight spaces.
