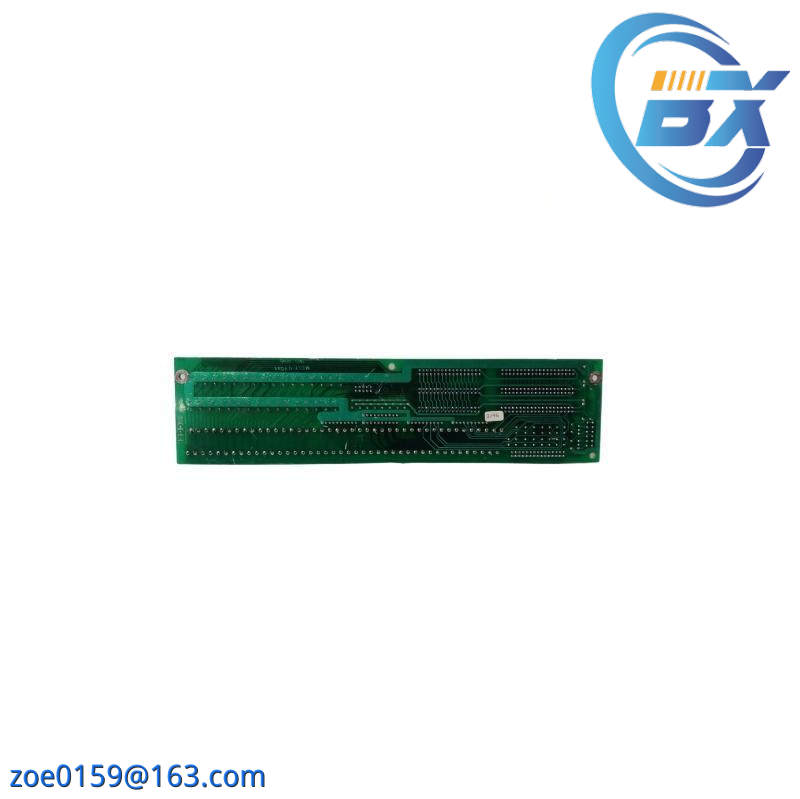

Part Number:DS200TBQCG1AAA
Series:Mark V
Manufacturer:General Electric
Product Type:RST Analog Termination Board
Functional Acronym:TBQC
Number of TBQC Connections:5
Connections:[“JBR”,”JFR”,”TEST”,”JBS/T”,”JFS/T”]
Technical Documentation:GEH-6153 Instruction Manual
The DS200TBQCG1AAA RST Analog Termination Board is meticulously engineered to meet the rigorous demands of industrial applications. It excels in providing reliable analog signal transmission and termination, making it an indispensable component in GE’s Mark V Series Turbine Control Systems.
This board includes a comprehensive set of voltage-limiting hardware components, including rectifiers, capacitors, and diodes, which work together to ensure stable electrical performance under varying load conditions.
Its robust design features a thick layer of standard PCB surface coating, enhancing durability and protecting against environmental factors such as dust and moisture.
Installation and integration are straightforward, thanks to its compact dimensions and standardized connections. It seamlessly integrates into existing control systems, minimizing downtime and maximizing operational efficiency.
Enhance your control system’s capabilities with the DS200TBQCG1AAA. Whether you’re managing turbine operations or automating industrial processes, this board delivers unparalleled precision and reliability.
