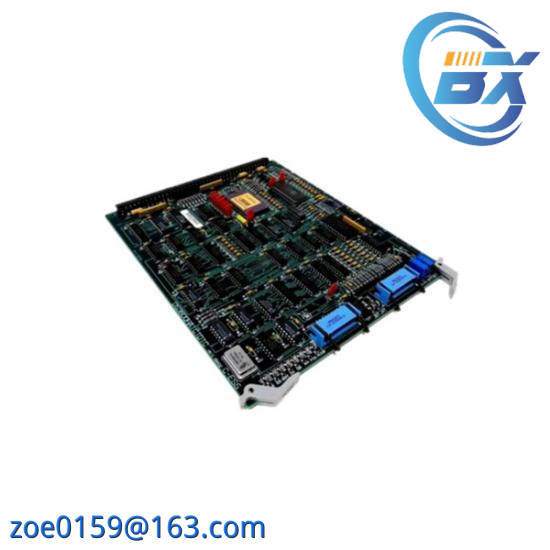

Module Type:Ground Detector Board
Model Number:DS3800NGDC1A
Manufactured By:GE-FANUC
Operating Temperature Range:-40°C to +70°C
Power Supply Voltage:24V DC
Input Signal Type:Current
Output Signal Type:Relay
Operating Current:≤ 1mA
Dimensions (WxHxD):56mm x 44mm x 22mm
Weight:150g
Connection Type:Pin Header
Communication Interface:No Communication Interface
Certifications:[“CE”,”UL”]
The DS3800NGDC1A Ground Detector Board is meticulously engineered to ensure high reliability and robust performance in industrial environments. Its advanced design incorporates ceramic metal film resistors, offering precision and durability in electrical circuits.
Equipped with a variety of connector types, including P6 and P4 connectors, this board ensures seamless integration with various components in the industrial control system. This flexibility is crucial for maintaining compatibility across different system architectures.
The inclusion of capacitors in fixed vacuum, ceramic, and polyester film varieties caters to diverse application requirements, enhancing the board’s adaptability to different electrical demands. Capacitors rated at 200V, 100V, and 80V provide a wide range of voltage handling capabilities, ensuring stability under varying operational conditions.
Providing original technical support from GE, the DS3800NGDC1A offers users access to comprehensive documentation, including datasheets and manuals. These resources are invaluable for understanding the board’s functionality, maintenance, and troubleshooting, contributing to an enhanced user experience and system longevity.
This specialized control module is an indispensable asset in industrial control systems, serving as a guardian of ground integrity. Its meticulous design and superior material selection make it a reliable choice for applications where electrical safety and system uptime are paramount.
