Board Type:Mark IV DS3800
Connector Ports:10 + 4 additional
Test Points:10 located between ports
Components:Various types including resistors, capacitors, diodes
Material:Black plastic and silver-gold metal
Size:Dimensions X Y Z
LEDs:Over 35 on the face
Mounting:12 screw mounts provided

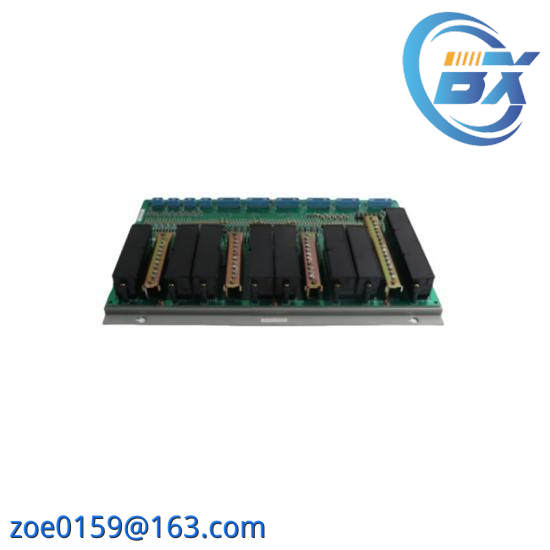

Engineered for reliability and performance, the GE-FANUC DS3800XAIB1E1E Circuit Board is an essential upgrade for industrial control systems. Its robust design ensures stable operation under demanding conditions, enhancing overall system uptime and efficiency.
With its advanced features, this circuit board supports multiple testing points, enabling detailed diagnostics and quick troubleshooting, crucial for maintaining optimal performance in complex industrial setups.
Featuring a comprehensive array of over thirty-five red LEDs, the board provides clear visual indicators, facilitating easy monitoring of system status without the need for additional diagnostic tools. This feature is particularly advantageous for rapid identification of potential issues, ensuring swift corrective actions.
Equipped with twelve screw mounting places, the DS3800XAIB1E1E is securely fastened within the control panel, offering a compact yet durable solution for integration into existing systems. This ensures a seamless fit, minimizing installation time and maximizing operational readiness.
The inclusion of nine distinct connection points for various wiring harnesses ensures compatibility with a wide range of equipment, making the DS3800XAIB1E1E a versatile choice for diverse industrial applications. It supports both standard and custom configurations, providing flexibility to meet specific project requirements.
