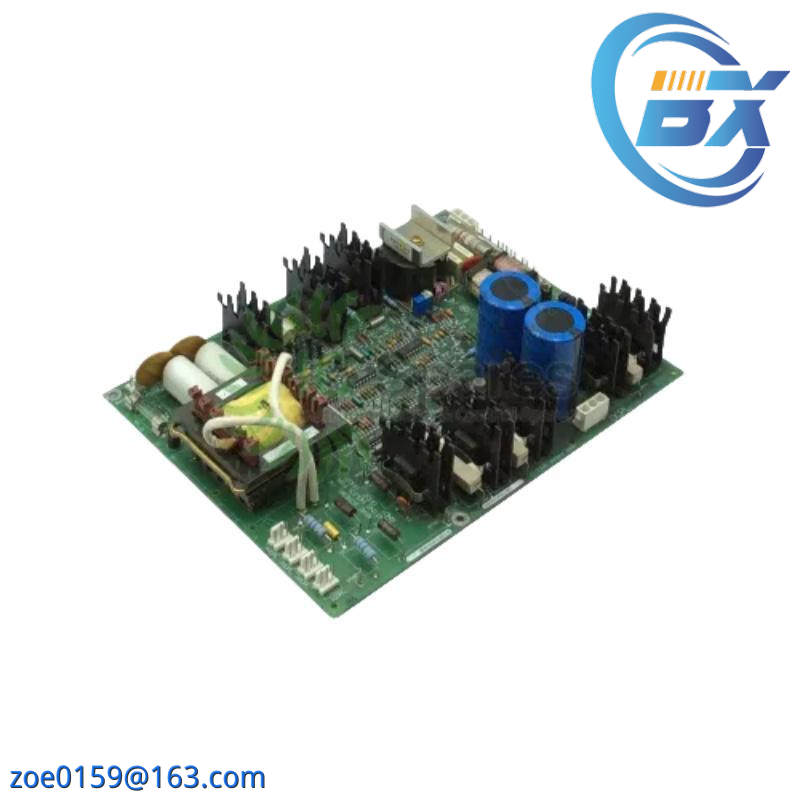

Model Type:DS200GDPAG1AEB
Series:Mark VI
Module Designation:Advanced Gate Driver Power
Weight:0.32 kg
Dimension:25.4 cm x 10.2 cm x 3.5 cm
Power Rating:Up to 200V DC
Operating Temperature Range:-40°C to +85°C
Input Voltage Range:DC 10V to 100V
Output Current:20A
Communication Protocol:Modbus-RTU
Protection Mechanism:Overcurrent Protection, Overvoltage Protection
The GE DS200GDPAG1AEB is engineered with precision and reliability, making it an indispensable component for advanced industrial control systems. Its opto-isolated design ensures isolation between the input and output circuits, preventing any potential electrical interference and enhancing system safety.
Featuring a robust operating voltage range of 12VDC and capable of delivering up to 5A of current, this module is optimized for high-efficiency power delivery, supporting a wide array of industrial applications from motor control to complex automation processes.
Equipped with a maximum gate voltage rating of 40V, the DS200GDPAG1AEB is versatile enough to handle a broad spectrum of load requirements, ensuring compatibility and performance across different industrial equipment.
The module boasts an impressive insulation resistance of ≥10MΩ, ensuring reliable operation even in harsh environments. With its ability to operate within an ambient temperature range of -40°C to +85°C, it is suitable for use in extreme conditions, providing consistent performance throughout its operational life.
Compact yet powerful, the DS200GDPAG1AEB measures just 50mm x 30mm x 15mm, allowing for easy integration into existing control systems without compromising on space. Its lightweight design (20g) facilitates quick installation and maintenance, minimizing downtime and enhancing operational efficiency.
