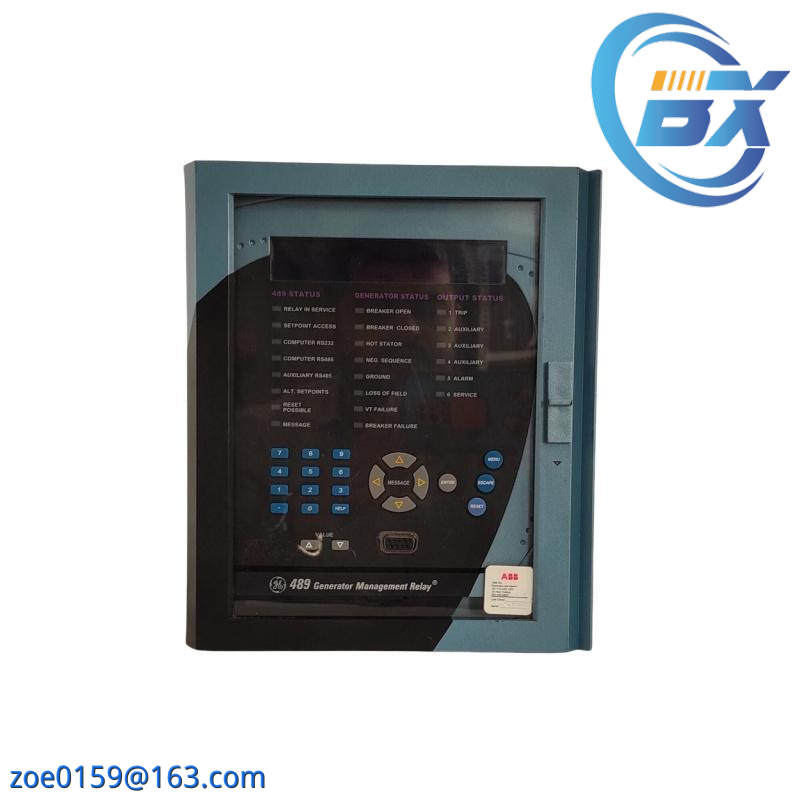

GE 489-P1-HI-A20-E-H: Precision Engineered Generator Management Relay

Technical Specifications Damped Oscillation Test Level:2.5KV, 1.0 MHz

Ground Overcurrent Curve Shapes:ANSI, IEC, IAC, Flexcurve

Definite Time Mounting Method:Panel or 19″ Rack

Operating Temperature Range:-40 to 60°C

Production Tests:Dielectric Strength 1.9 kV AC for 1 second or 1.6 kV AC for one minute, per UL 508

Shipping Weight:7.7 kg or 17 lbs.

Tachometer Duty Cycle:> 10%

Trip Coil Supervision:Trickle Current 2 to 5 mA

Underfrequency Pickup Accuracy:±0.02 Hz

    Engineered for unparalleled performance in harsh industrial environments, the GE 489-P1-HI-A20-E-H Generator Management Relay is a testament to advanced technology and innovation. This high-capacity relay ensures seamless integration with existing power systems, offering unparalleled reliability for mission-critical applications.

    Featuring state-of-the-art damped oscillation test capabilities up to 2.5KV at 1.0 Mhz, this relay surpasses industry standards for ground overcurrent curve shapes, ensuring precise control and protection against unexpected electrical surges.

    With a versatile mounting method that supports both panel and 19″ rack configurations, this relay provides unparalleled flexibility, making it adaptable to various industrial settings. Its operating temperature range from -40°C to 60°C ensures robust performance across diverse climates.

    Backed by rigorous UL 508 production tests, the dielectric strength of 1.9 kV AC for 1 second or 1.6 kV AC for one minute guarantees exceptional insulation properties, safeguarding against potential electrical hazards.

    Equipped with a shipping weight of 7.7 kg or 17 lbs., the relay is designed for easy handling and installation without compromising its structural integrity. It is an indispensable component for optimizing energy distribution and enhancing operational efficiency in industrial plants.
