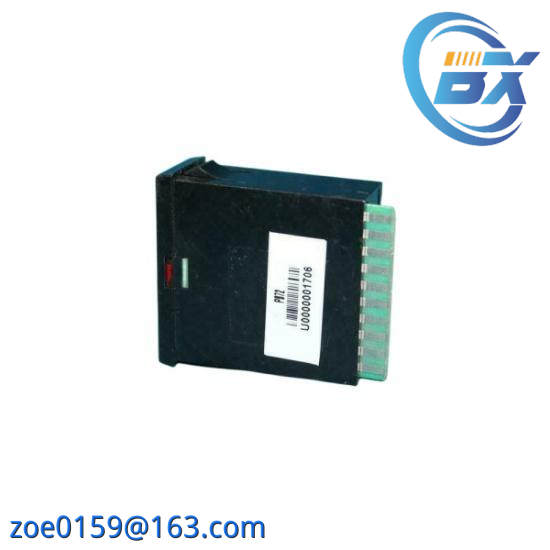

Asahi Keiki AP-102-13-11 Micro Isolation Transmitter

Signal Input Range:-10V to +10V DC

Signal Output Range:0V to 10V DC

Isolation Voltage:2500Vrms

Power Supply Voltage:10V to 30V DC

Operating Temperature:-20°C to +85°C

Relay Outputs:2

Input Current:≤10mA

Relay Contact Rating:3A/250VAC

Communication Interface:4-20mA

Protection Class:IP20

Dimensions:95mm x 52mm x 27mm

    The Asahi Keiki AP-102-13-11 Terminal type micro DC signal isolation transmitter is meticulously designed for seamless integration into various industrial automation systems. This compact unit boasts an impressive operating temperature range from -20°C to +85°C, making it suitable for use in diverse environments across different industries.

    With a robust isolation voltage of 1000V AC, it ensures superior protection against electrical interference, enhancing system reliability and safety. The device offers a wide input voltage range of 12V to 24V DC and delivers a stable output voltage of 0V to 10V DC, catering to the needs of precise signal processing.

    Featuring an accuracy of ± 0.1% Full Scale, this transmitter ensures minimal deviation in signal transmission, crucial for maintaining high performance in critical control applications. Additionally, it consumes a typical current of 1mA at 24VDC, making it energy-efficient and suitable for systems where power consumption is a concern.

    Designed with ease of installation in mind, the AP-102-13-11 is equipped with a terminal type connector, facilitating quick and secure connections. Its compact size and durable construction make it an ideal choice for space-constrained applications, without compromising on performance or functionality.

    For users seeking reliable and accurate signal isolation solutions, the Asahi Keiki AP-102-13-11 Terminal type micro DC signal isolation transmitter stands as an exceptional choice. Its combination of high accuracy, robust design, and versatile compatibility makes it a cornerstone component in modern industrial control systems.
