Ladder-logic and Structured-Text Programming:Supports complex control logic with enhanced programming capabilities
Advanced Instruction Set:Incorporates comprehensive instructions for file handling, sequencers, diagnostics, shift registers, immediate I/O, and program control
Multiple Main Control Programs:Facilitates segregation of control tasks for optimized system performance
Processor Input Interrupts:Enhances responsiveness with interrupts for timely processing
Global Status Flags:Monitors and reports system state for proactive management
Programmable Fault Response:Ensures robust operation with predefined responses to faults
Timed Interrupt Routine:Periodically checks specific system conditions for timely adjustments
Protected Memory:Selective protection against data loss during processor changes
Amperage Rating:Backplane: 5 VDC, 500 MA; DeviceNet: 24 VDC, 90 MA
Mounting:Chassis mounting for secure installation
Communication Speed:125 KBPS
Dimensions:Length: 1-23/64 IN; Width: 5-1/8 IN; Height: 5-11/16 IN
Enclosure:Open type for efficient heat dissipation
RFI Suppression:Reduces interference across frequency bands
Temperature Rating:32 – 140 DEG F
Environmental Conditions:Relative humidity: 5 – 95%

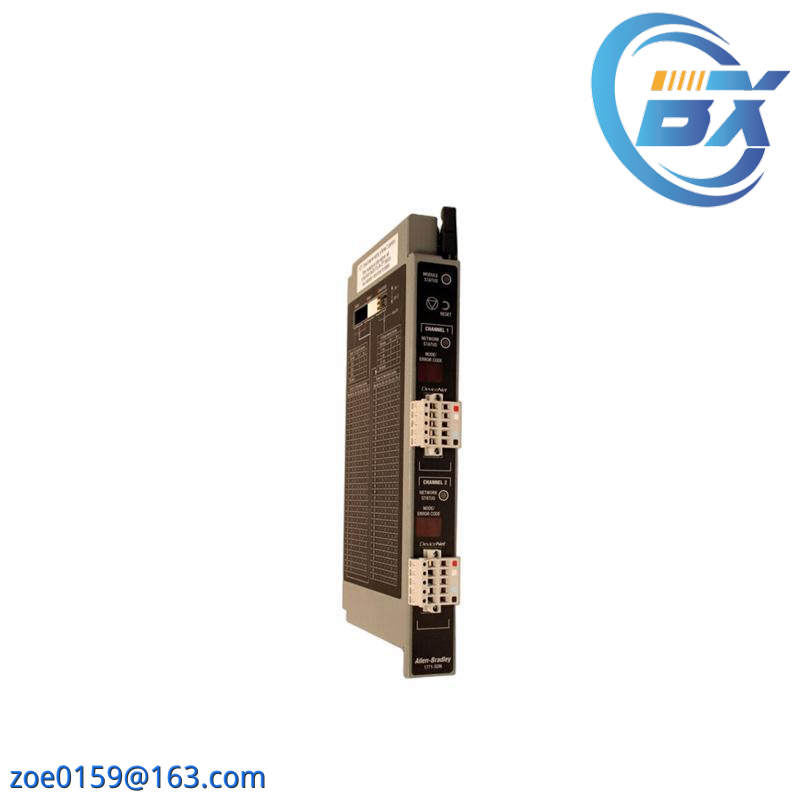

The Allen-Bradley AB 1771-SDN Scanner Module is a versatile component designed for seamless integration into industrial automation systems. It excels in providing real-time data acquisition, crucial for enhancing operational efficiency.
With its ladder-logic and structured-text programming capabilities, this scanner module offers advanced instruction sets including file handling, sequencer, diagnostic, shift register, immediate I/O, and program control instructions, catering to complex automation needs.
Equipped with multiple main control programs, it allows for the segregation of control tasks, ensuring that different processes can operate concurrently without interference, leading to increased productivity.
Processor input interrupts and global status flags are integrated for enhanced monitoring and control, enabling quick responses to system changes or faults before they impact operations significantly.
The programmable fault response feature ensures that the system can react promptly to faults, preventing unnecessary downtime and minimizing potential losses. Additionally, the timed interrupt routine facilitates the examination of specific information at predefined intervals, optimizing data collection and processing.
