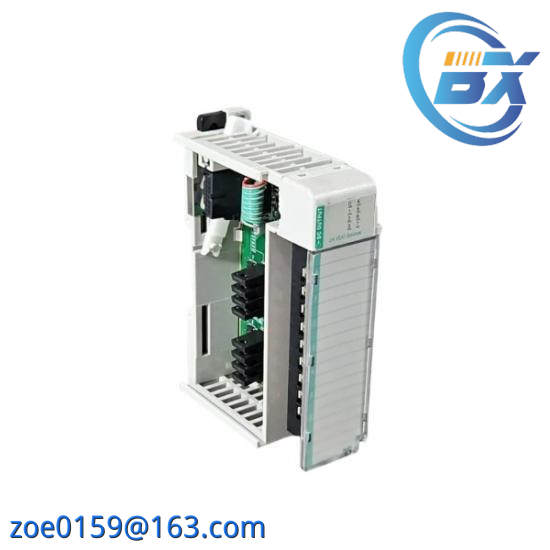

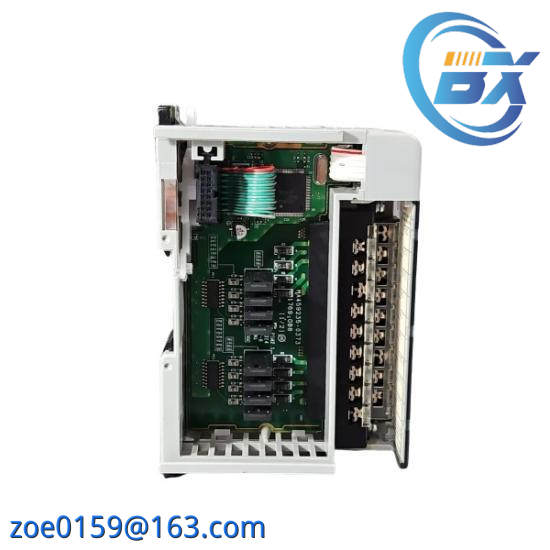

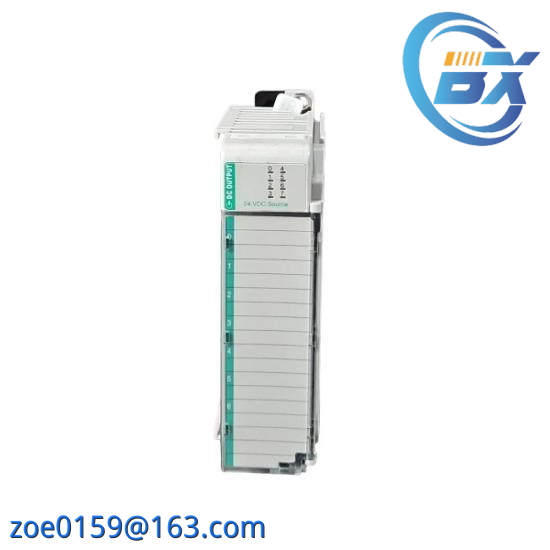

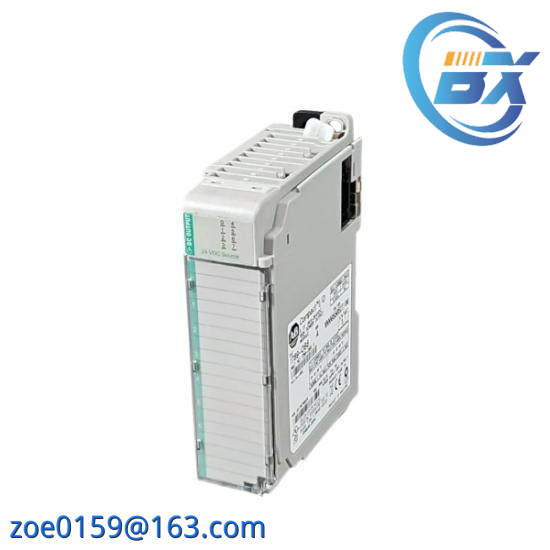

Allen-Bradley 1769-OB8/A CompactLogix Sourcing Output Module Series A

Model Number:1769-OB8/A

Module Type:CompactLogix Sourcing Output Module

Series:Series A

Power Supply Voltage:24VDC

Current Draw:Up to 5A per channel

Channels:8

Output Type:Discrete

Operating Temperature:-40°C to +70°C

Enclosure Type:IP20

Mounting Option:Panel or DIN Rail

Dimensions:118mm x 70mm x 87mm

Weight:630g

Communication Compatibility:RS-485, DeviceNet, ControlNet

    The Allen-Bradley 1769-OB8/A CompactLogix Sourcing Output Module Series A is engineered for seamless integration into complex industrial control systems. Its robust design ensures reliable performance under extreme environmental conditions, making it ideal for use in sectors like food processing, petrochemicals, pulp and paper production, automobile manufacturing, water and wastewater treatment, oil and gas extraction, and power generation.

    Each channel provides a discrete output, capable of driving a wide range of actuators and sensors, ensuring precise control over machinery operations. The module supports single and multi-drive operating modes, allowing for flexible configuration to meet various application requirements.

    Equipped with advanced communication protocols such as RS-485, DeviceNet, and ControlNet, this module facilitates seamless data exchange with other devices within the network, enhancing system efficiency and reliability.

    Featuring a compact yet durable design, the 1769-OB8/A can be mounted on both panel and DIN rail, providing versatile installation options. It comes with a standard fuse type of Wickmann 19193-6.3A or Littelfuse 021706.3MXP, ensuring safety and protection against overcurrent conditions.

    Weighing in at 630 grams, this module offers a lightweight solution without compromising on its powerful performance capabilities. Its IP20 enclosure type ensures dust resistance and protection from minor impacts, guaranteeing long-lasting reliability in harsh industrial environments.
