Model Type:ControlLogix
Manufacturer:Allen-Bradley
Model Number:1756-OF8H
Weight:1.00 lbs
Number of Points:8
Communication Protocol:HART
Input Type:Analog Output
Module Type:Output
Operating Range:Multiple Current and Voltage
Data Formats:Choice of three
Sampling Rate:Real Time
Alarm Detection:[“Under Range”,”Over Range”,”Process Alarms”,”Rate Alarm”,”Wire-off Detection”]

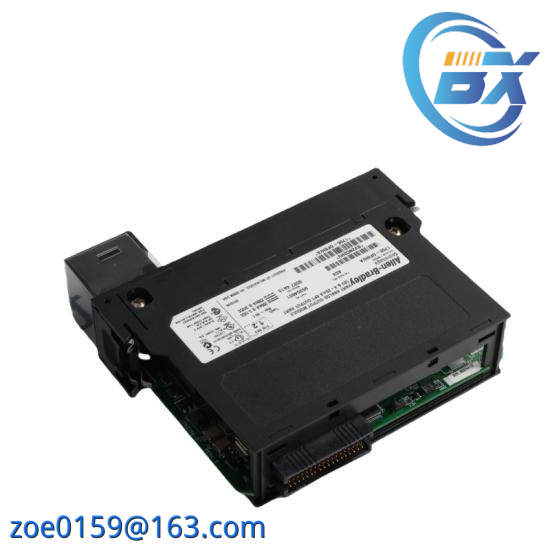

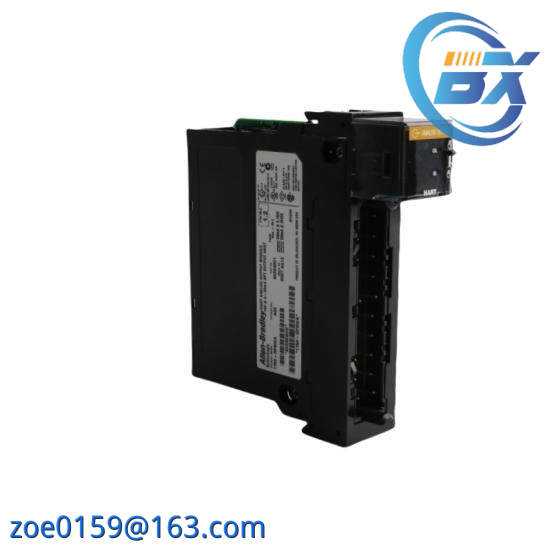

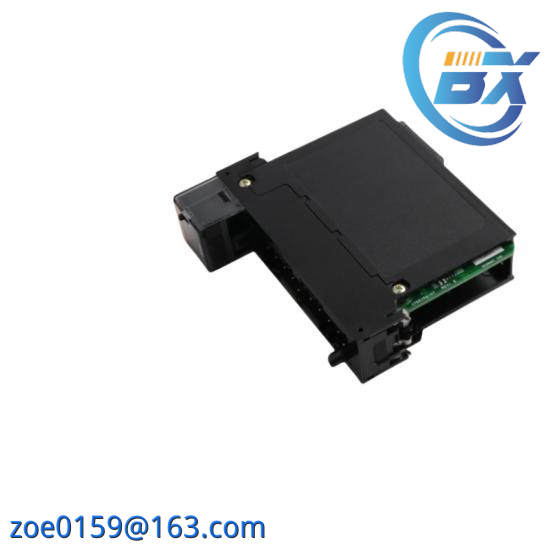

The Allen-Bradley 1756-OF8H ControlLogix 8-Point Analog Input/HART Module is a high-performance solution designed for seamless integration into complex industrial control systems. Its versatile 8-channel design allows for differential voltage or current inputs, making it adaptable to various applications.
Equipped with an advanced HART interface, this module ensures bidirectional communication with intelligent devices, providing detailed diagnostics and real-time data transfer. It supports multiple data formats and offers a wide range of current and voltage input options, catering to diverse system requirements.
The integrated module filter enhances signal integrity, reducing noise and interference for reliable operation. The real-time sampling feature ensures accurate and timely data acquisition, while the under-range and over-range detection capabilities prevent system malfunctions and improve safety.
With process alarms and rate alarm functionalities, the 1756-OF8H provides proactive monitoring and early warning against potential issues. The wire-off detection feature ensures continuous operation by promptly identifying and addressing disconnections or open circuits.
Facilitating easy installation and maintenance, the module is compatible with a ControlLogix chassis, requiring either a removable terminal block (RTB) or a wiring interface module (IFM) for field-side connections. This robust and feature-rich module is an essential component for optimizing industrial automation processes.
