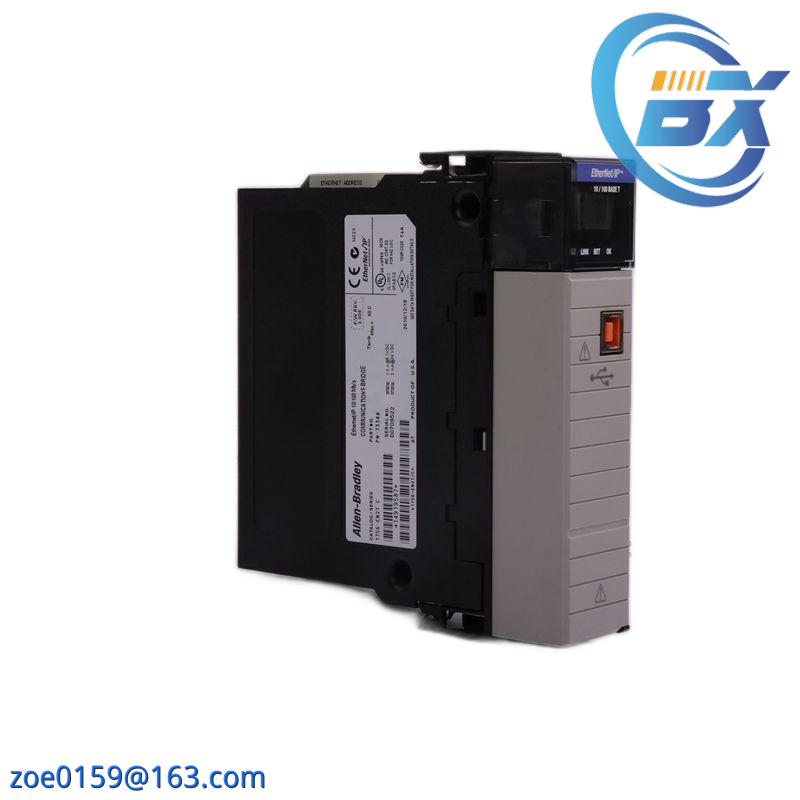

Allen-Bradley 1756-EN2T/C ControlLogix EtherNet/IP Bridge Module: Industrial Automation Excellence

Model Type:High Capacity IP Module

Manufacturer:Allen-Bradley

Additional Information:ControlLogix Communication Module

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:N/A

    The Allen-Bradley 1756-EN2T/C ControlLogix EtherNet/IP Bridge Module is designed for advanced industrial automation, offering unparalleled performance and reliability. This module seamlessly integrates ControlLogix systems with Ethernet/IP networks, facilitating efficient data transfer and enhancing system connectivity.

    With a robust open-type enclosure, it ensures durability under varying environmental conditions, making it suitable for harsh industrial settings. The module supports a temperature range of 0 – 60 DEG C and can withstand humidity up to 95% non-condensing, ensuring reliable operation in diverse environments.

    Equipped with a continuous isolation of 30 V, this module provides a high level of safety against electrical interference, safeguarding critical data integrity. It’s capable of handling vibration up to 2 G and shock up to 30 G, further enhancing its suitability for demanding industrial applications.

    Featuring an Ethernet interface, the 1756-EN2T/C offers compatibility with a wide range of Ethernet/IP devices, enabling seamless integration within complex automation networks. The presence of a USB port facilitates easy configuration and firmware updates, streamlining the setup process for users.

    Designed with efficiency in mind, this module consumes just 5.1 W of power, reducing energy consumption and operational costs. Its compact size and modular design allow for flexible installation within existing control systems, minimizing downtime during implementation.
