Number of Channels:4
Input Range:-20 to +20 VDC
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS
Input Current:-30 to +30 mA
Overvoltage Protection:7.5 VAC RMS
Voltage Rating:Over 10 VDC
Current Rating:Backplane: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC
Enclosure Type:Open Type

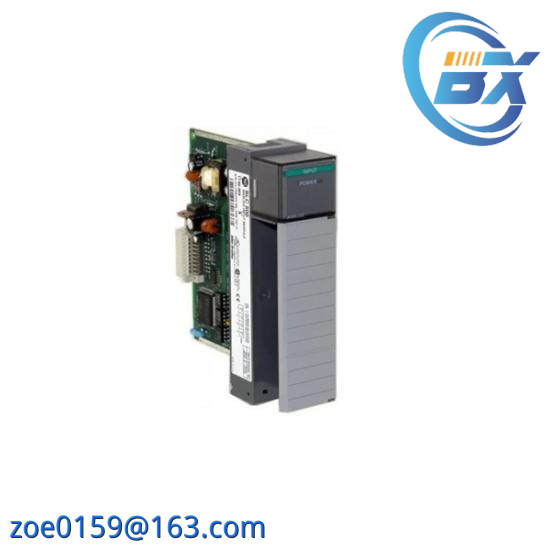

Engineered with Allen Bradley’s renowned precision, the 1746-NI4B Analog Input Module ensures accurate signal capture and transmission, vital for maintaining operational efficiency in complex industrial systems.
This module boasts an impressive common mode voltage range, enabling reliable operation under varying environmental conditions.
Featuring a robust backplane current draw and isolation specifications, it guarantees seamless integration into existing systems without compromising safety or performance.
The open-type enclosure design facilitates easy installation and maintenance, while its compatibility with multiple communication protocols enhances connectivity options.
Ideal for applications requiring high-resolution measurements, this module is a game-changer for optimizing control systems in sectors like manufacturing, energy, and process industries.
