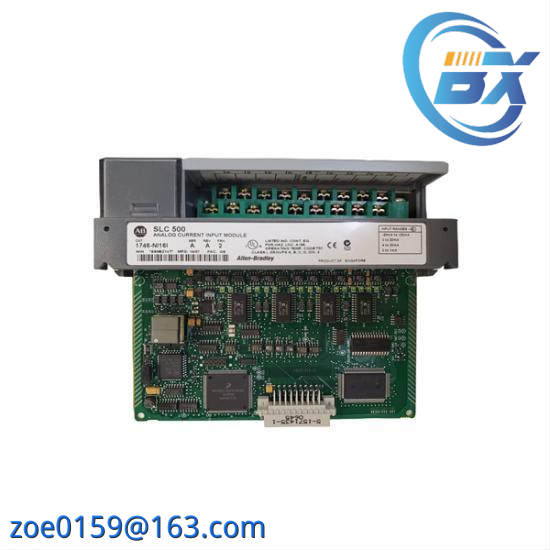

Model Type:SLC500
Model Number:1746-NI16I
Manufacturer:Allen Bradley
Number of Channels:16
Common Mode Voltage Range:+/- 10.25 V relative to Analog Common Terminal
Type of Input:Plus/Minus 20 MA, 4 – 20 MA, 0 – 1 MA, 0 – 20 MA
Maximum Voltage Input Without Damage:+/- 8 V between any two signal terminals
Current Rating:Backplane: 125 MA at 5 VDC, 75 MA at 24 VDC; Current Input: +/- 30 MA
Isolation:500 VAC isolation for 1 SEC
Power Rating:Backplane: 2.425 W; Enclosure: Open Type
Enclosure Type:Open Type
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% non-condensing
Communication Ports:Available for EtherNet/IP, DH+, DH-485, or RS-232
Engineered for demanding industrial applications, the Allen Bradley SLC500 1746-NI16I offers unparalleled reliability and precision. Its robust design ensures longevity and consistent performance in harsh environments.
This module supports a variety of input types, including standard 4-20 mA, 0-10 V, and thermocouple connections, making it compatible with a wide array of sensors and actuators commonly found in manufacturing and automation processes.
With a common mode voltage range of +/- 10.25 V and a maximum input voltage without damage of +/- 8 V between any two signal terminals, the 1746-NI16I ensures accurate readings even under varying electrical conditions.
Featuring a current rating of 125 MA at 5 VDC and 75 MA at 24 VDC, the backplane provides sufficient power to support most industrial control systems. The current input can handle up to +/- 30 MA, ensuring compatibility with various devices requiring current-based inputs.
Equipped with 500 VAC isolation for 1 second, this module guarantees reliable operation by preventing interference and ensuring safety in high-voltage environments. Its open-type enclosure and temperature rating from 0 to 60 DEG C ensure durability and performance in diverse industrial settings.
