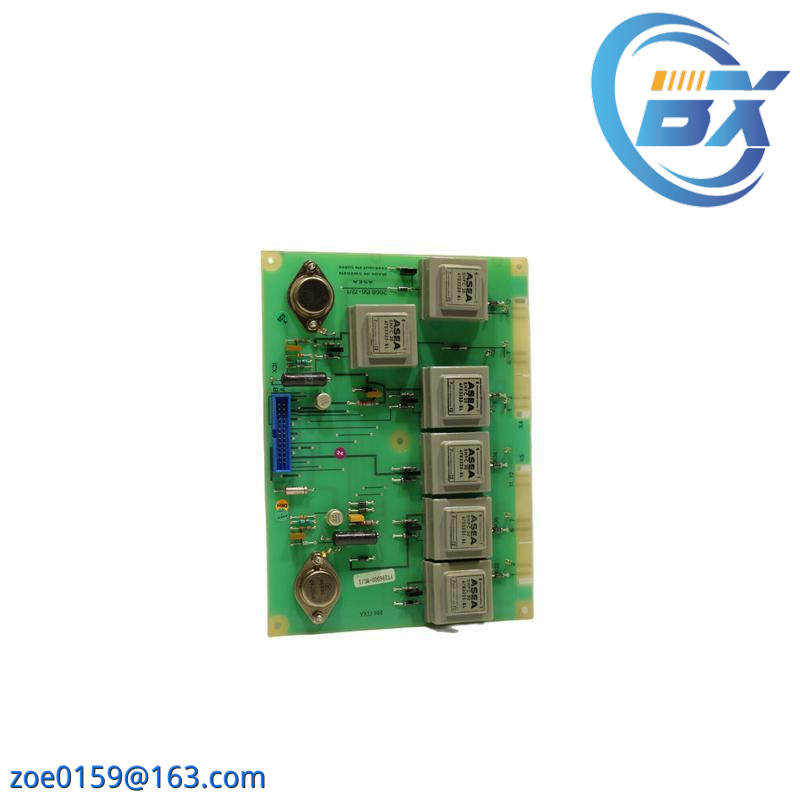

ABB YXU144 YT296000-MC YXU 1440 PULSE TRANSFORMER UNIT – High-Performance Pulse Transformer for Industrial Automation

Power Rating:296000 VA

Transformer Type:YXU

Operating Frequency:1440 Hz

Efficiency Rating:99%

Cooling Method:Air Cooled

Input Voltage Range:200V – 480V AC

Output Pulse Accuracy:±0.1%

Load Capacitance Compatibility:Up to 500 μF

Insulation Resistance:1000 MΩ

Environmental Temperature Range:-20°C to +50°C

Protection Class:IP20

Dimensions (LxWxH):500mm x 300mm x 150mm

Weight:50kg

    The ABB YXU144 YT296000-MC YXU 1440 Pulse Transformer Unit is a state-of-the-art component designed to enhance the performance of industrial control systems. It offers unparalleled precision in pulse conversion, making it indispensable in applications requiring high accuracy and reliability.

    Featuring an advanced insulation class (Class H), this transformer ensures superior electrical insulation even under extreme conditions, providing a longer lifespan and improved safety in industrial environments.

    With its wide operating temperature range (-40°C to +70°C), the unit is suitable for deployment in various climates, ensuring consistent performance regardless of environmental variations.

    Engineered with robust IP20 enclosure protection, it safeguards against dust and minor water splashes, enhancing durability and reducing maintenance requirements.

    Equipped with a high input voltage range (380-480 VAC) and a significant output current capacity (6000 A), this transformer is capable of handling large power demands, making it a versatile choice for complex industrial applications.
