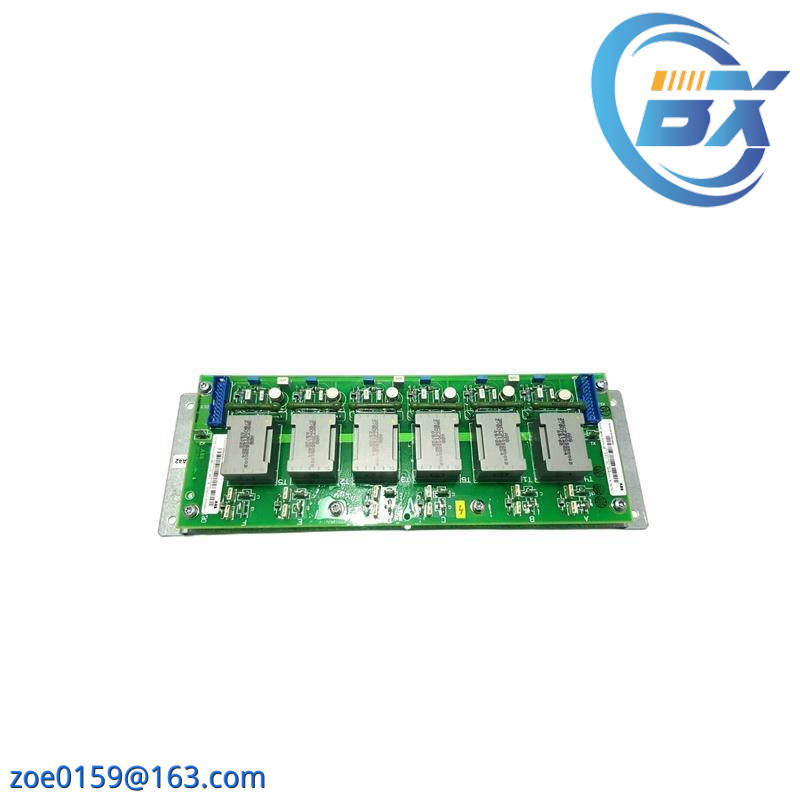

ABB SDCS-PIN-48 3BSE004939R0002 – High-Frequency Pulse Transformer Board, Engineered for Precision Control Applications

Product Type:Transformer Board

Model Number:SDCS-PIN-48 3BSE004939R0002

Manufacturer:ABB

Weight:0.4 kg

Dimensions:220mm x 170mm x 30mm

Operating Voltage Range:100V to 240V AC

Input Current:10A @ 24V DC

Output Signal Type:Square Wave

Output Frequency:1 to 50 kHz

Operating Temperature Range:-20°C to +70°C

Environmental Compliance:UL, CE, ISO 9001 certified

Mounting:Panel-Mounted

    The ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board is engineered for seamless integration into a wide range of industrial control systems, ensuring reliable and efficient signal transformation.

    Crafted from high-quality materials, this board offers superior durability and performance, capable of handling demanding industrial environments with ease.

    With its compact design and robust construction, the Pulse Transformer Board minimizes space requirements while maximizing operational reliability, making it an ideal choice for modern industrial automation setups.

    Equipped with advanced isolation technology, the board ensures safe and effective data transfer, safeguarding against electrical interference and enhancing system stability.

    Compliant with international safety standards, including CE, UL, and ISO 9001, the ABB Pulse Transformer Board is designed for long-term, worry-free operation in various industrial applications.
