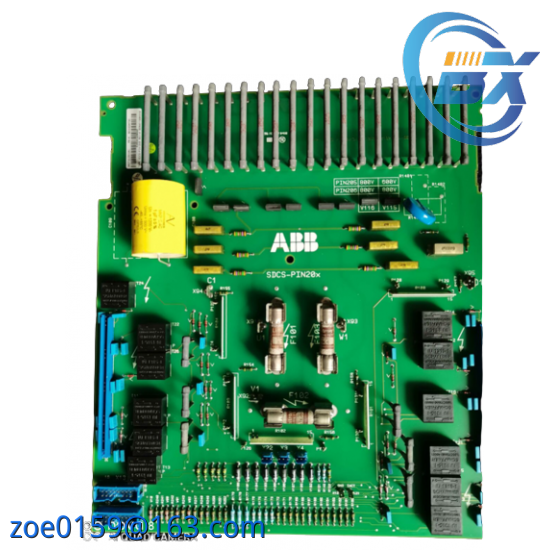

ABB SDCS-PIN-22 PLC’s DCS Module

Module Type:Digital Signal Control System Module

Model Number:SDCS-PIN-22

Operating Voltage Range:85V – 265V AC or 100V – 240V DC

Communication Interface:RS-485 Modbus RTU

Data Acquisition Speed:Up to 1KHz

Reliability Rating:MTBF > 50,000 hours

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +70°C

Dimensions (W x H x D):105mm x 90mm x 30mm

Weight:Approx. 150g

Environmental Compliance:CE, UL, FCC

    The ABB SDCS-PIN-22 Digital Control System Module is engineered to deliver exceptional reliability and efficiency in industrial environments. It features advanced digital signal processing capabilities for enhanced system responsiveness and accuracy.

    Equipped with an extensive range of inputs and outputs, this module supports various types of sensors and actuators, facilitating precise control over industrial processes.

    With its robust design, the ABB SDCS-PIN-22 is built to withstand challenging industrial conditions, ensuring continuous operation even in harsh environments.

    The inclusion of a Modbus RTU communication interface enables seamless integration with existing control systems, minimizing setup time and streamlining system interoperability.

    The module’s compact size and lightweight construction make it easy to install and integrate into tight spaces within industrial plants, optimizing layout and reducing installation costs.

    Comprehensive diagnostic features provide real-time monitoring and predictive maintenance alerts, helping to minimize downtime and maximize operational efficiency.
