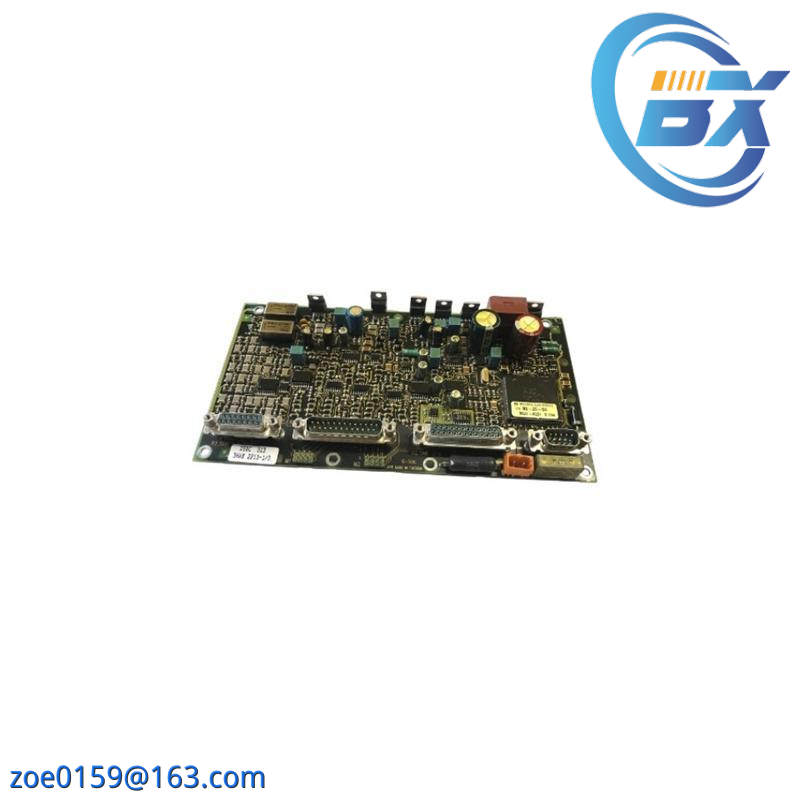

ABB SBM DSQC313 – High Precision Measurement Board, 3HAB2213-1 / 3HAC021455-001/05 / 3HNP04378-1/02

Model Number:3HAB2213-1 3HAC021455-001/05 3HNP04378-1/02

Technology:Digital I/O

Input Voltage:12-24VDC

Operating Temperature Range:-20°C to +70°C

Data Transfer Rate:100 kbps

Communication Protocol:DeviceNet, EtherCAT

Dimensions (WxHxD):105mm x 35mm x 10mm

Weight:15g

Power Consumption:Max 1.5W

    The ABB SBM DSQC313 is a versatile measurement board that seamlessly integrates into industrial control systems, providing reliable and precise data collection essential for process monitoring and control applications.

    Equipped with 16 input and 16 output channels, it supports various types of signals including analog and digital inputs, enabling complex system configurations.

    Operates within an extensive temperature range of -20°C to +70°C, ensuring durability in diverse industrial environments.

    Featuring a robust 24V DC power supply, this board ensures stable operation even under fluctuating conditions.

    With its RS-485 communication interface, the DSQC313 facilitates seamless data exchange with other devices in the network, enhancing system efficiency and reliability.

    Crafted with precision and reliability in mind, the ABB SBM DSQC313 measurement board is a critical component for achieving optimal performance in modern industrial automation systems.
