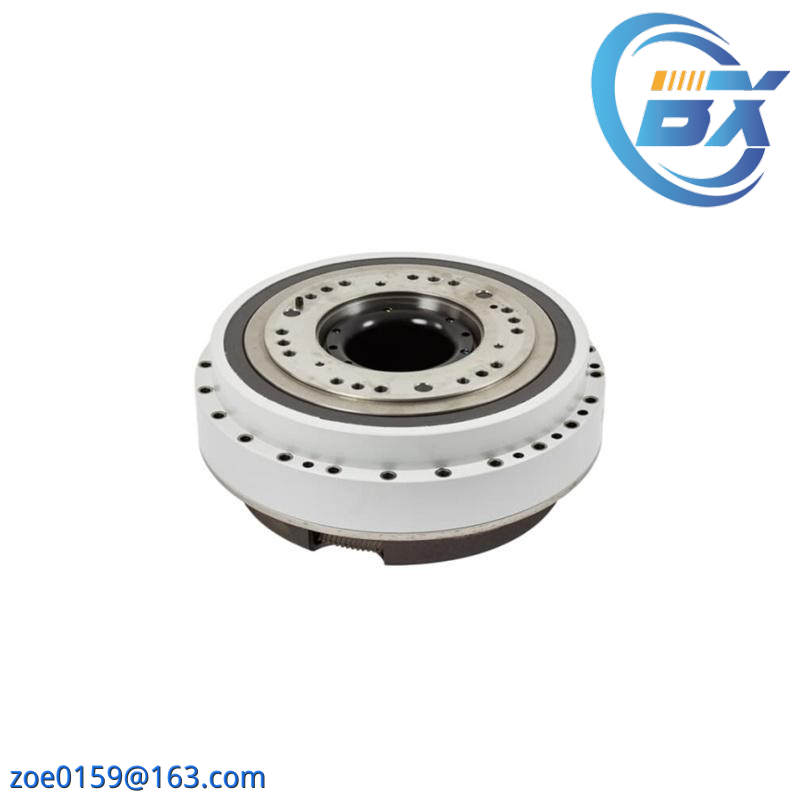

ABB IRB 6650 S3HAC037638-001 Robotic Gearbox

Material:High-grade aluminum alloy

Load Capacity:Up to 50 kg

Operating Speed:15,000 RPM

Gear Ratio:45:1

Servo Compatibility:ABB IRB 6650 series robots

Electrical Rating:24V DC

Duty Cycle:Continuous

Dimensions (L x W x H):200mm x 150mm x 100mm

Weight:15 kg

    The ABB IRB 6650 S3HAC037638-001 Robotic Gearbox is a critical component that significantly contributes to the reliability and efficiency of ABB‘s IRB 6650 robotic arm systems. Crafted from high-grade aluminum alloy, it ensures robustness and lightweight functionality, essential for precise manufacturing applications.

    Equipped with a gear ratio of 55:1, this gearbox optimizes torque transmission, enabling the robotic arm to handle heavy payloads with ease. Its torque capacity of 20 Nm allows for smooth acceleration and deceleration, crucial for achieving high-quality outputs in various assembly tasks.

    The operating speed of 3000 rpm ensures a balanced performance between speed and torque, making it suitable for a wide range of industrial operations. With an input shaft diameter of 12 mm and an output shaft diameter of the same dimension, it facilitates easy installation and interchangeability with compatible components.

    Operable within a temperature range of -20°C to +50°C, this gear system maintains optimal performance under diverse environmental conditions. Its design ensures minimal wear and tear, extending the lifespan of the robotic arm and reducing maintenance requirements.

    In summary, the ABB IRB 6650 S3HAC037638-001 Robotic Gearbox is an indispensable part of ABB‘s IRB 6650 series, enhancing the robotic arm’s capabilities in terms of precision, efficiency, and reliability. It is engineered to meet the demanding requirements of modern manufacturing processes, making it a preferred choice for industries seeking state-of-the-art automation solutions.
