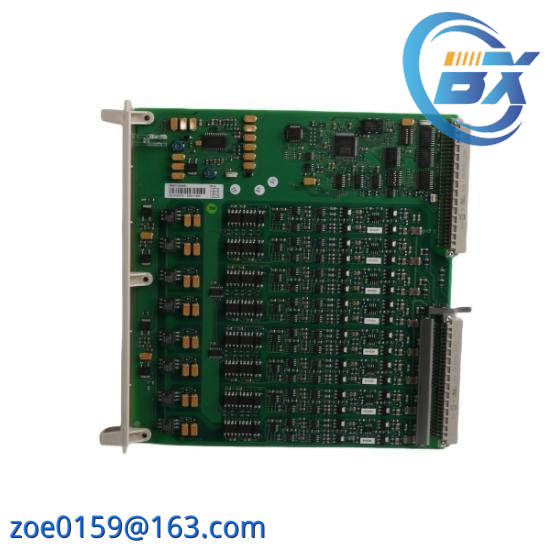

ABB DSAO120A 3BSE018293R1 – High-Precision Analog Output Board

Operating Voltage:120 V

Frequency Range:1 Hz to 1 kHz

Analog Output Type:Current (4-20 mA)

Resolution:12-bit

Accuracy:+/- 0.5%

Input Range:-10 V to +10 V

Communication Interface:Modbus RTU

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Relative Humidity:5% to 95% non-condensing

Mechanical Dimensions:142 mm x 104 mm x 63 mm

Material:Aluminum alloy

    Integrating state-of-the-art technology, the ABB DSAO120A 3BSE018293R1 Analog Output Board is designed to offer unparalleled precision and reliability in industrial automation applications.

    Featuring a robust 12-bit resolution, this module ensures accurate signal transmission, critical for maintaining operational efficiency and product quality.

    With support for voltage outputs up to 10A, it is capable of driving a wide range of actuators and devices, making it suitable for diverse industrial settings.

    Equipped with a versatile communication interface, the module seamlessly integrates with existing systems via Modbus RTU, enhancing system interoperability and data exchange capabilities.

    Engineered for durability, the ABB DSAO120A operates within an extended temperature range (-20°C to +55°C), ensuring reliable performance under varying environmental conditions.

    Offering high isolation voltage (500VDC), the module effectively protects against electrical interference, safeguarding against potential malfunctions and enhancing system safety.
