Module Type:IGBT
Rated Current (Irms):1200A
Maximum Voltage (Vrms):690V
Switching Frequency (kHz):25
Cooling Method:Thermal Pad & Heat Sink
Operating Temperature Range:-40°C to +125°C
Insulation Resistance:≥ 10^12 ohms
Electrical Isolation:≥ 4000V AC
Mechanical Strength:250N
Environmental Compliance:RoHS compliant

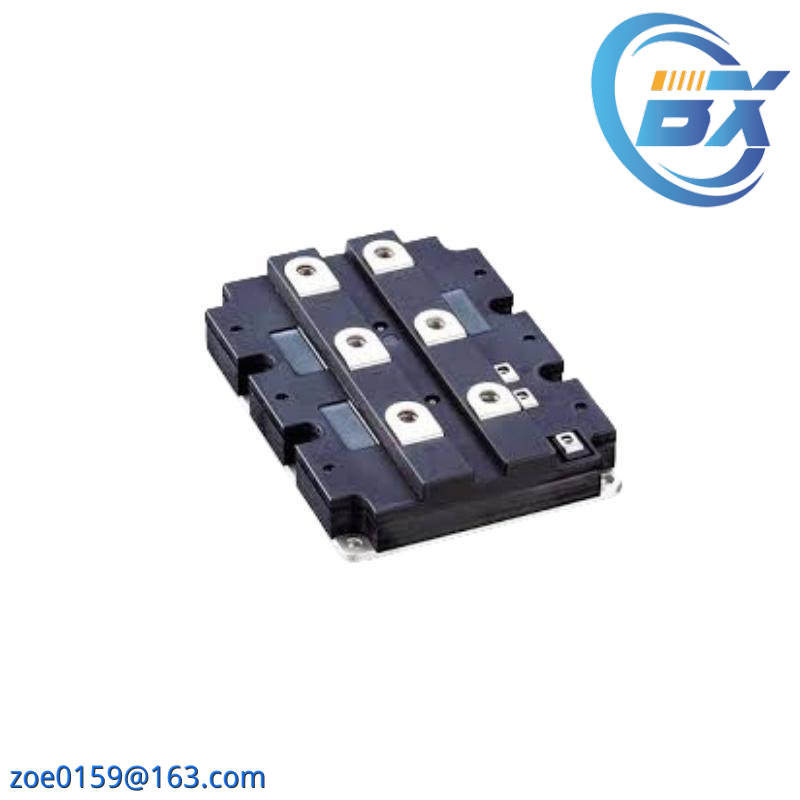

The ABB 5SNA1200E330100 HiPak IGBT Module is engineered to deliver exceptional performance in heavy-duty industrial environments. With a robust water-cooling system, it ensures optimal thermal management for extended operational life under demanding conditions.
Featuring an advanced insulation class F, this module is capable of handling high currents and voltages without compromising on safety or efficiency. It is ideal for applications requiring precise control and energy management, such as in manufacturing, mining, and heavy machinery operations.
Designed with ease-of-integration in mind, the module seamlessly connects to existing power systems through its standard 3-phase AC input/output interface. This allows for quick setup and minimal downtime during maintenance or upgrades.
To enhance operational flexibility, the ABB 5SNA1200E330100 HiPak IGBT Module supports a wide range of environmental conditions, ensuring reliable performance from -5°C to +45°C. Its compact yet sturdy design makes it suitable for space-constrained industrial settings.
Committed to sustainability, ABB‘s engineering ensures minimal environmental impact throughout the product lifecycle. From eco-friendly materials in production to efficient energy use, this module aligns with global environmental standards and practices.
