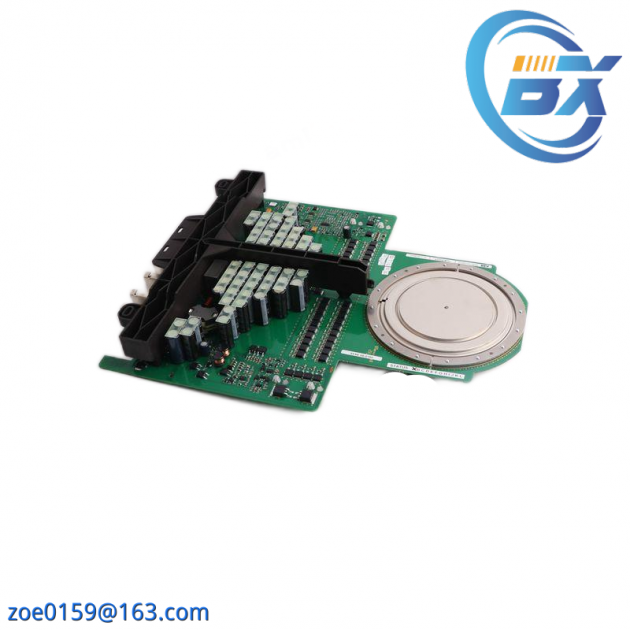

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 IGBT Module for Industrial Automation

In stock

This IGBT module from ABB is designed for high-efficiency power conversion in industrial automation systems, offering precise control and exceptional reliability across a wide range of applications.

Operating Voltage:DC 1000V

Current Rating:6545 Amps

Switching Frequency:20kHz

Insulation Resistance:≥10MΩ

Temperature Range:-40°C to +175°C

Cooling Method:Thermal Pad Cooling

Material:Aluminum Alloy Housing

Certification:CE, UL, IEC

Dimensions (WxHxD):150mm x 200mm x 100mm

The ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 IGBT Module is a cutting-edge solution designed to enhance energy efficiency and system performance in demanding industrial environments.

Featuring advanced semiconductor technology, this module ensures high switching speeds and low conduction losses, making it ideal for high-power density applications requiring precise control and reliability.

Engineered for robustness, the module operates within an extensive temperature range (-40°C to +125°C), ensuring consistent performance under various environmental conditions.

With its efficient cooling design utilizing a thermal pad and forced air, the module maintains optimal operating temperatures, extending its lifespan and reducing maintenance requirements.

Certified to IEC 60077-2 standards, this IGBT module complies with international safety and quality benchmarks, providing assurance to engineers and manufacturers seeking dependable components for their industrial automation projects.

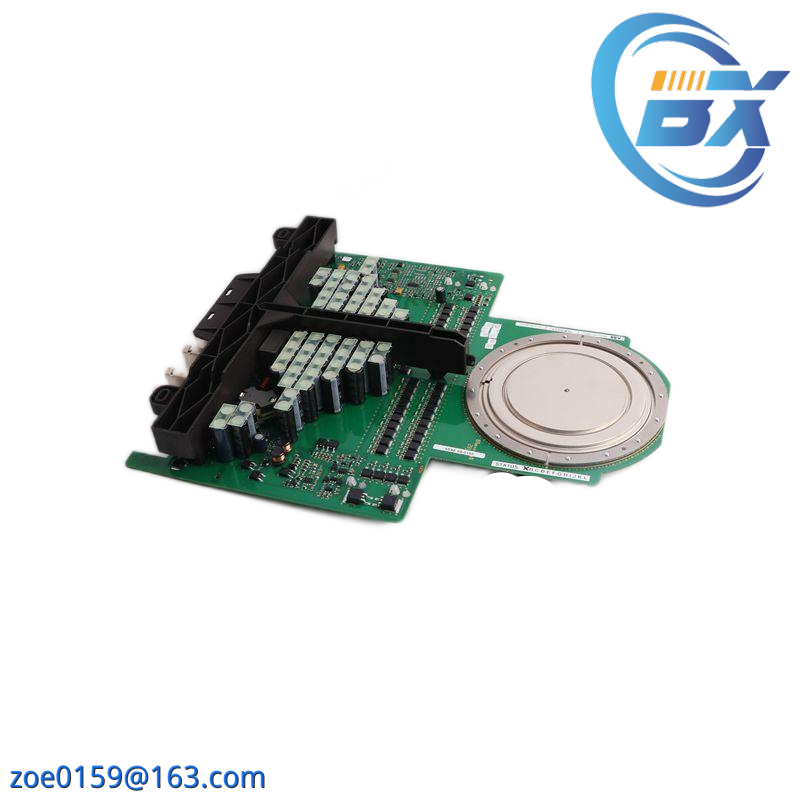

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 ABB IGBT module
