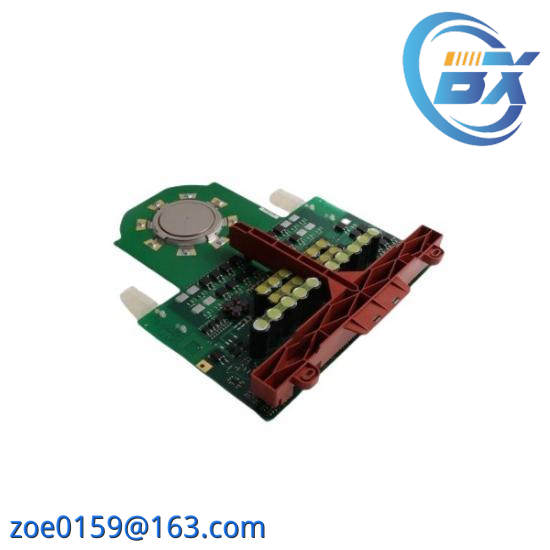

ABB 5SHX 1000H0003 IGBT Module

Type:IGBT Module

Model Number:5SHX 1000H0003

Power Rating:1000 kW

Operating Temperature Range:-40°C to +125°C

Insulation Class:180°C

Cooling Method:Thermal Conduction

Input Voltage Range:DC 1500 V

Output Current:Up to 2000 A

Package Type:Standard IGBT Module

Mounting Method:Panel Mount

Material:Aluminum Alloy

    Unmatched Performance: Designed to deliver exceptional power handling capabilities in industrial automation systems, ensuring peak efficiency and reliability under extreme conditions.

    Robust Construction: Utilizing advanced materials and manufacturing techniques, this IGBT module is built to withstand harsh industrial environments without compromising on performance.

    Advanced Cooling System: Features an efficient thermal conduction system that ensures optimal heat dissipation, preventing overheating and enhancing the longevity of the module.

    Wide Operating Range: Suitable for use across a broad temperature spectrum (-40°C to +125°C), making it ideal for applications in diverse geographical locations.

    Simplified Installation: With its standard panel mount design, the ABB 5SHX 1000H0003 IGBT module simplifies installation processes, reducing downtime and increasing productivity.
