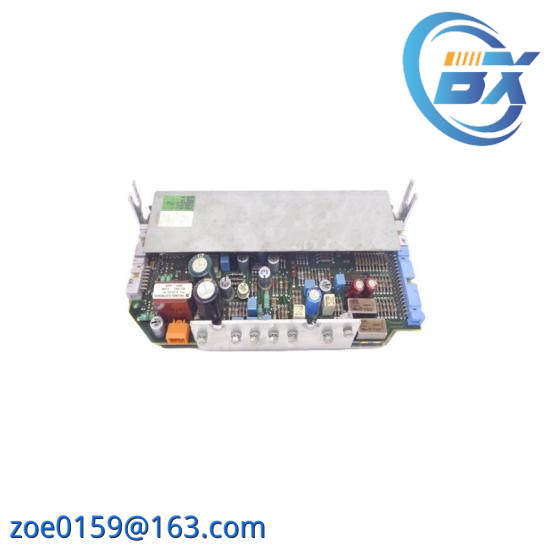

ABB 3HAA3563-AMA/2 Measurement Board, Automation Components

Type:Measurement Board

Model:3HAA3563-AMA/2

Brand:ABB

Series:Automation Components

Power Supply Voltage:24V DC

Input Signal Range:-10V to +10V

Output Signals:4-20mA

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:120mm x 100mm x 30mm

Weight:0.25kg

Connection Type:RS-485

Communication Protocol:MODBUS RTU

Certifications:CE, UL

    This Measurement Board from ABB is a critical component for enhancing the precision and reliability of industrial automation processes. It features a robust design capable of handling a wide range of environmental conditions, ensuring consistent performance in manufacturing lines, process control systems, and other demanding applications.

    Equipped with high-precision sensors and advanced signal processing technology, this board accurately measures various physical parameters such as temperature, pressure, flow, and more, providing real-time data essential for efficient monitoring and control.

    The ABB 3HAA3563-AMA/2 is compatible with industry-standard protocols, enabling easy integration with existing control systems. Its compact size and durable construction make it suitable for space-constrained environments without compromising on functionality.

    Designed for durability and longevity, this Measurement Board utilizes a high-grade aluminum alloy to withstand harsh industrial environments. The inclusion of an RS-485 interface allows for versatile communication with other devices, while analog input/output channels facilitate direct interaction with sensors and actuators.

    Safety and compliance are paramount in industrial settings. This Measurement Board meets international safety standards, including CE, UL, and FCC certifications, ensuring its safe operation in global markets. For maintenance and troubleshooting, comprehensive documentation and support resources are available, making it accessible to users of all skill levels.
