Operating Voltage:380V AC
Current Rating:50A
Frequency Range:400Hz
Control Protocol:Profibus DP
Input/Output Channels:24
Communication Interface:RS485
Protection Class:IP20
Operating Temperature:-25°C to +60°C
Storage Temperature:-40°C to +85°C

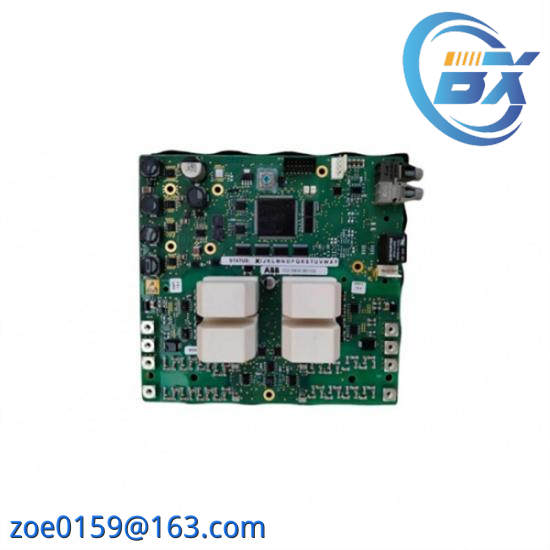

The ABB GD D830 B105 GATE DRIVE – 3BHE022678R0105 boasts a robust design for enhanced reliability and efficiency in high-speed switching applications. Its high switching frequency ensures minimal electromagnetic interference, making it suitable for sensitive systems.
Featuring a modular construction, this gate drive module allows for easy integration into existing control systems. It supports both PWM and analog input signals, providing flexibility in signal handling and processing.
With its F-class insulation, the ABB GD D830 B105 is capable of operating in challenging industrial conditions without overheating. The IP20 protection class ensures basic splash resistance, enhancing its durability in factory environments.
For seamless communication and control, this module is compatible with MODBUS RTU protocol, allowing for simple setup and integration with various automation software. The current feedback output enables precise monitoring of the load’s electrical parameters.
In summary, the ABB GD D830 B105 GATE DRIVE – 3BHE022678R0105 offers a combination of high-performance capabilities, ease of integration, and robust design, making it an ideal choice for advanced control systems requiring precise and reliable gate drive solutions.
