Operating Voltage:10V to 30V DC
Current Rating:10A
Switching Frequency:20kHz
Temperature Range:-40°C to +125°C
Mounting Type:SMD
Dimensions:100mm x 70mm
PCB Material:FR-4

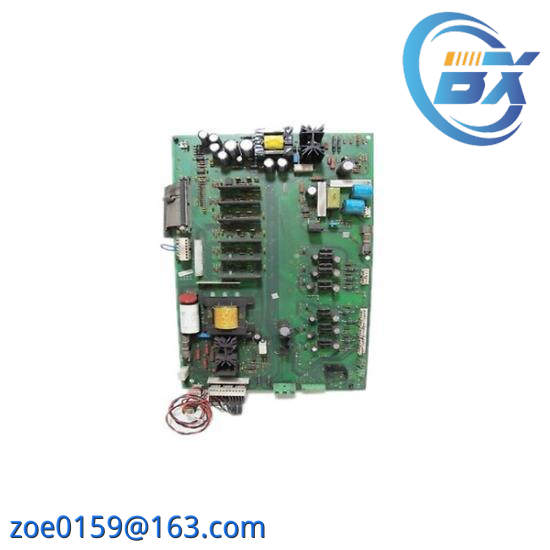

The ABB 1336-BDB-SP49D Gate Driver PC Board is engineered to deliver unparalleled reliability and efficiency in demanding industrial environments. Its robust design ensures seamless integration into complex power management systems, enhancing system stability and reducing maintenance needs.
Featuring advanced gate drive technology, this board optimizes switching performance, minimizing energy loss and prolonging the lifespan of connected components. Its high input voltage range allows for flexible compatibility with various power sources, making it suitable for a wide array of industrial applications.
With its precise control capabilities, the ABB 1336-BDB-SP49D ensures smooth operation across different load conditions, providing consistent performance under varying environmental temperatures. The inclusion of an RS-485 communication interface facilitates easy setup and monitoring, allowing for remote adjustments and diagnostics.
Manufactured from high-quality materials, the board is designed to withstand harsh industrial conditions without compromising on functionality or performance. Its compact size and lightweight construction make it easy to install and integrate into existing systems, without adding unnecessary bulk or weight.
Incorporating state-of-the-art manufacturing techniques, the ABB 1336-BDB-SP49D Gate Driver PC Board represents the pinnacle of innovation in power management solutions. Its superior performance, combined with ABB‘s commitment to quality and reliability, makes it an ideal choice for industrial facilities seeking to optimize their power usage and enhance operational efficiency.
