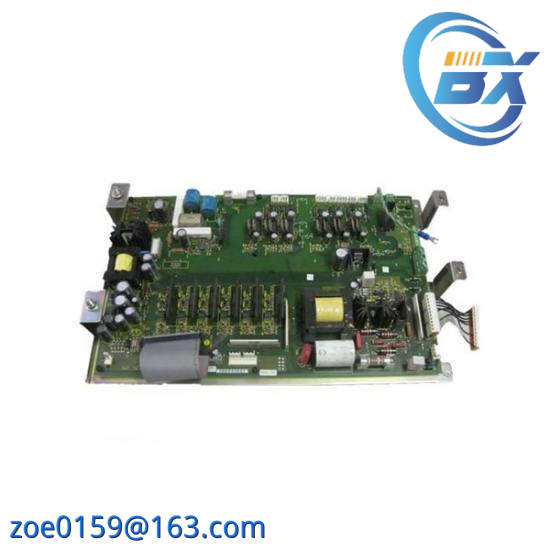

Manufacturing Brand:ABB
Model Number:1336-BDB-SP34D
Board Type:PCB Gate Drive Board
Module Category:Power Electronics
Operating Voltage Range:200V to 600V DC
Current Capacity:Up to 400A
Switching Frequency:Up to 20kHz
Insulation Class:Class F
Operating Temperature Range:-25°C to +70°C
Reliability Rating:MTBF > 100,000 hours
Certifications:[“UL”,”CE”,”ISO 9001″]
The ABB 1336-BDB-SP34D PCB Gate Drive Board is engineered to deliver unparalleled performance in demanding industrial environments. Its robust design ensures seamless integration into complex automation systems, optimizing energy usage and minimizing downtime.
Featuring a High-grade Insulated Metal Substrate (IMS), this PCB Gate Drive Board offers exceptional thermal management capabilities, ensuring stable operation even under extreme conditions. The advanced technology incorporated into its circuitry ensures precise gate drive signals, leading to enhanced system reliability and efficiency.
With an operating temperature range from -20°C to +60°C, this board is suitable for a wide variety of industrial applications, from cold storage facilities to hot manufacturing environments. Its compact size and efficient power consumption make it an ideal choice for space-constrained installations.
Equipped with an RS-485 communication interface, the ABB 1336-BDB-SP34D facilitates seamless data exchange with other components in the system, allowing for easy monitoring and control. This feature is crucial for integrating the board into modern IoT-based automation solutions.
Backed by ABB‘s commitment to quality and reliability, the 1336-BDB-SP34D PCB Gate Drive Board comes with a MTBF rating of over 50,000 hours. This longevity ensures a cost-effective and sustainable investment for manufacturers looking to maximize uptime and minimize maintenance costs.
