Board Size:85mm x 65mm
Operating Voltage:12V to 40V DC
Maximum Current:500mA per channel
Input Signal:Logic-level (TTL/CMOS)
Output Configuration:Push-Pull
Package Type:Surface Mount Technology (SMT)
Operating Temperature Range:-40°C to +85°C
Power Consumption:1W

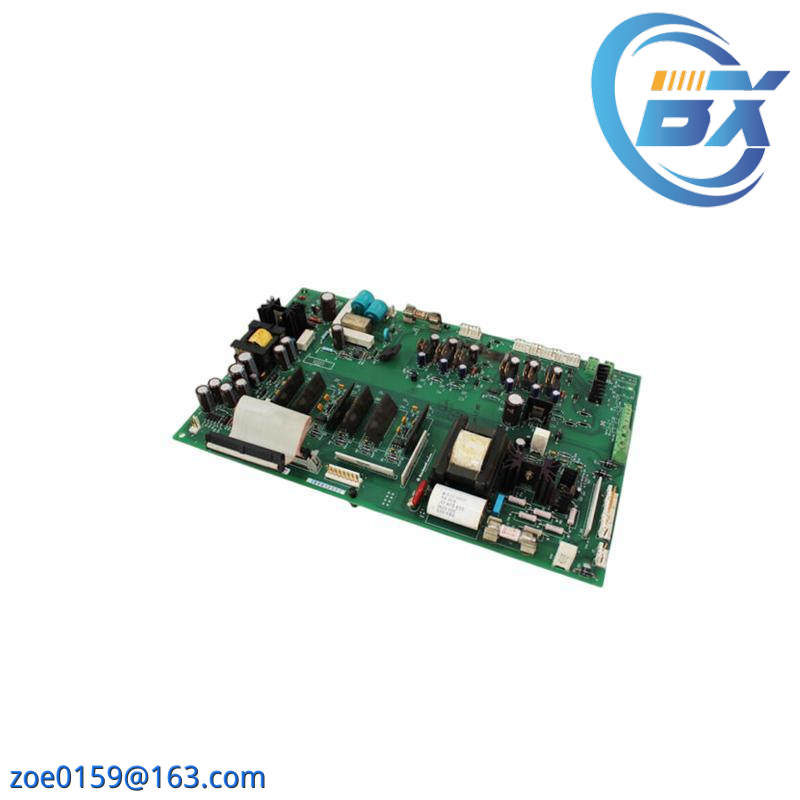

Introducing the AB 1336-BDB-SP4D Gate Driver Board Kit, engineered specifically for seamless integration into industrial control systems. This advanced kit boasts a compact yet robust design, capable of handling a wide array of semiconductor devices with unmatched efficiency.
Each channel in this board is equipped to deliver up to 5A of current, ensuring that even the most demanding applications are met with ease. Its compatibility with various power MOSFETs and IGBTs makes it an indispensable tool for engineers looking to optimize their system’s performance.
With an input voltage range spanning from 10V to 50V DC, this gate driver board ensures compatibility across a broad spectrum of power sources, enhancing its versatility in diverse industrial environments. Its ability to operate within a temperature range of -40°C to +85°C further underscores its reliability under extreme conditions.
Measuring 150mm x 100mm x 10mm, the AB 1336-BDB-SP4D is designed with space constraints in mind, making it suitable for compact control cabinets and systems where board size is a critical factor. The inclusion of four channels allows for parallel operation or redundancy, depending on the user’s specific requirements.
Featuring an operating frequency of up to 50kHz, this gate driver board excels in scenarios requiring rapid switching and high-frequency signal processing. Its precision timing and minimal switching losses contribute significantly to the overall efficiency of the systems it powers, making it a preferred choice for industries seeking to enhance energy consumption and operational effectiveness.
