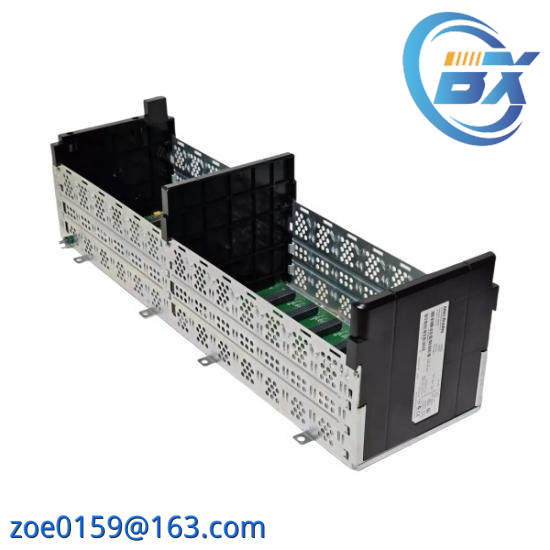

AB 1756-A13/B 13 Slot ControlLogix Chassis – Series B

Slot Capacity:13 Slots

Power Supply:Redundant Power Supply, 24V DC, 240W

Input Voltage Range:120/240V AC / 210-375V DC

Backplane Current:Chassis / Slot Max. At 1.2 V DC: 1.5 A

Compatibility:Any ControlLogix Module

Mounting Type:Horizontal Mounting Only

Chassis Design:Based on Series B Standards

Module Interface:Requires RTB or IFM for Wiring Connection

    Introducing the Allen Bradley 1756-A13/B 13 Slot ControlLogix Chassis – Series B, an indispensable component for industrial automation projects requiring versatility and scalability. This chassis is specifically engineered to accommodate up to 13 ControlLogix modules, offering a comprehensive solution for complex control and monitoring systems.

    Designed for horizontal mounting, this chassis supports a wide range of ControlLogix modules, enabling users to tailor their system to meet specific application requirements. Its redundant power supply ensures reliability and uptime, crucial in demanding industrial environments.

    Equipped with a high-speed backplane, the 1756-A13/B facilitates fast data transfer between modules, enhancing system responsiveness and efficiency. Its compatibility with ControlNet™ and EtherNet/IP™ networks allows seamless integration into existing automation infrastructures.

    With its robust design and modular flexibility, the Allen Bradley 1756-A13/B is an ideal choice for industries seeking to enhance operational efficiency, reduce downtime, and improve overall productivity. It’s a testament to Allen-Bradley’s commitment to providing cutting-edge solutions for industrial automation.

    For optimal performance, we recommend using a removable terminal block (RTB) or a Bulletin 1492 wiring interface module (IFM) to connect all field-side wiring. This ensures a secure and efficient connection, minimizing maintenance needs and maximizing system reliability.
