Product Type:Analog Input Module
Model Number:1746-IV16
Manufacturer:Allen-Bradley
Number of Channels:16
Input Voltage Range:10-30 VDC
Absolute Input Voltage:+/- 15 VDC
Input Range:-10 to +10 VDC
Common Mode Voltage Range:-20 to +20 VDC
Current Input Range:-20 to +20 mA
Overvoltage Protection:7.5 VAC RMS
Isolation Voltage:500 VDC
Backplane Current Consumption:≤ 50 mA at 5 VDC
Operating Temperature:-40°C to +85°C
Storage Temperature:-55°C to +150°C

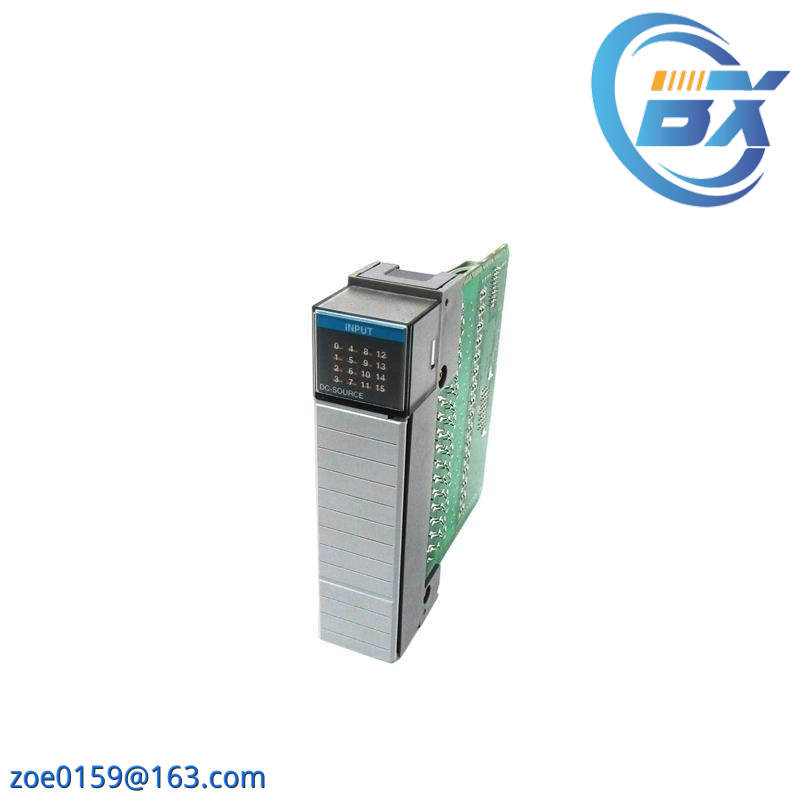

The AB 1746-IV16 module is specifically engineered for seamless integration into Allen-Bradley’s SLC 500 series controllers, providing high-resolution analog input capabilities.
Each channel offers precise voltage and current readings, essential for monitoring and controlling processes in a wide range of industries including manufacturing, packaging, and material handling.
Designed with robust isolation and overvoltage protection, this module ensures reliable operation even in harsh industrial environments.
Featuring a compact and durable design, the AB 1746-IV16 is compatible with standard backplane connections, simplifying installation and maintenance.
With its wide input voltage range and high accuracy, this module is ideal for applications requiring precise data acquisition from sensors, such as temperature, pressure, or flow measurement devices.
